如何从 Adobe Illustrator 进行打印/激光处理
![](/static_processed/492ebf445320511532c163003f0b53c6/adobe-illustrator-logo-760x584-e0c.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-logo-760x584-e0c.jpg","edits":{"extract":{"top":13,"left":0,"width":760,"height":570},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}}){kind=logo}
CorelDraw®的替代软件
我们反复咨询的问题：“我是否真的需要使用CorelDraw®？我更愿意在Adobe Illustrator等其他程序中编辑我的设计。答案？没问题。使用此指南来确定最佳设置。
最佳设置指南
在开始时选择以下正确设置来确定激光设备能否正确解释图形信息。
分步指南
![Create your graphic in Adobe Illustrator](/static_processed/282d5c4531ecb37159c1984718035164/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-create-graphic.PNG","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第1步：创作图形

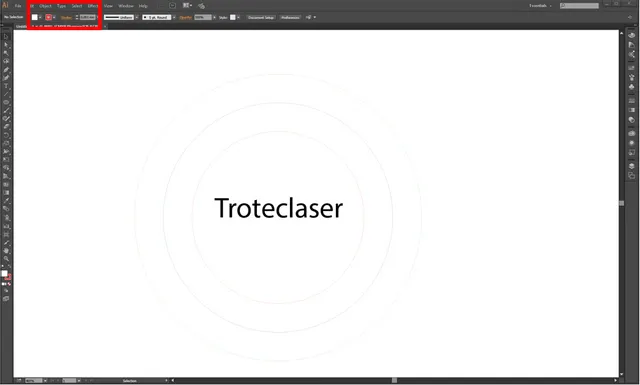

在 Adobe Illustrator® 中使用以下设置：
- 切割线的线宽必须为 0.001 mm
- 使用 RGB 颜色空间（与 Job Control® 材料数据库中的相同）
- 笔画必须与中心对齐
![Adobe Illustrator: Set line color](/static_processed/6d94e70c1e7ba1a41906a3f3f41c06ec/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-set-line-color.PNG","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![Create your graphic in Adobe Illustrator](/static_processed/91c037f249617be37f157489f4299da2/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-color-mode.PNG","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![Adobe Illustrator: Set Line Width](/static_processed/4d2150d6e129ef044351c07e826379ec/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-set-line-width.PNG","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![Adobe Illustrator: Set Align Stroke Center](/static_processed/1c8166714f735a59dbee092e0387238e/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-align-stroke.PNG","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![](/static_processed/407309fb113fd3999c0eda1f58f15441/illustrator-print-settings-laser-engraving-760x750-457.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/illustrator-print-settings-laser-engraving-760x750-457.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第2步：转到打印参数设置框
现在，您的设计已准备就绪，想将它发送至激光设备。就像 CorelDraw® 一样，Adobe Illustrator® 也需要通过打印对话框与激光机通信。
点击“打印 (Print)”，将打开 Adobe Illustrator® 打印窗口。在“输出 (Output)”部分，确保已选定 RGB 为颜色空间。
然后，点击“设置 (Setup)”，将打开经典打印对话框。
![print dialogue illustrator](/static_processed/b2e950b8f9c53053e6e3ab18ad845593/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/printerdialog_AI.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第3步：选择 Trotec 雕刻机，输入激光机设置
现在选择 Trotec 雕刻机并点击“首选项 (Preferences)”或“设置 (Settings)”。您可以在此处调整激光机的打印参数。
![Adobe Illustrator: Set printing parameters](/static_processed/36310fda911a47aa3a229849f8d25170/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-set-printing-parameters.PNG","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第4步：设置打印参数
- 设置大小：宽度和高度必须大于或等于图形大小
- 如果只想打印作业的可见区域，请勾选“最小化至作业大小 (Minimize to Jobsize)”。
- 从材料数据库中选择材料设置。
- 点击 Job Control 徽标按钮进行打印
![Adobe Illustrator: Printer settings](/static_processed/cc2a80a8bd54239261eb114cb27ee1bf/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/printing-from-illustrator.PNG","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
![Adobe Illustrator: Set Printing area](/static_processed/1524c5c8d02ea2a31d8396e04b6a2aa5/.PNG?{"image":"https://backend.troteclaser.com/static/images/knowledge/tips-tricks/how-to-print-from-adobe-illustrator/adobe-illustrator-set-printing-area.PNG","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第5步：JobControl®
在JobControl®窗口中，您将看到加工范围面板，可从右侧菜单中选择当前加工操作（或必要时选择已完成的激光加工操作），将它放在加工区域面板的任何地方。
关于JobControl®的更多信息，请查看此处。
