Mark and engrave different materials in one step: How does flexx technology actually work?

Speedy flexx laser engraver series

What is flexx technology and how does it work?

The Speedy flexx laser engraver offers both the fiber and CO2 laser sources integrated into just one machine. With a flexx system, you can process an unlimited amount of various applications. Using the CO2 laser source allows you to engrave and cut plastics, rubber, wood, leather and many other materials. The fiber laser source is then the right tool for marking metals and staining plastics.

The patented flexx function will offer you endless possibilities: Thanks to the flexx technology developed exclusively by Trotec, both laser sources operate in a single step process. Depending on the material being processed, the intuitive software activates each laser source alternately in just one job and eliminates the need for manually changing the laser tube, lens or focus. This means that every application can be realized in no time, regardless of the specific material being processed. Saving you time and offering flexibility unseen with any other technology.

What materials can a Speedy flex laser machine process?

applications speedy flexx

CO2 laser source:

Fiber laser source:
  • Wood
  • Paper
  • Leather
  • Acrylic
  • Glass
  • Textiles
  • Anodized aluminum
  • Stone
  • TroLase materials
  • Plastic
  • Films and foils
  • Rubber
  • Plastic
  • Stainless steel
  • Aluminum
  • Copper
  • Titanium
  • Galvanized, Nickel-plated surfaces
  • Gold
  • Silver
  • Platinum

How do both laser sources operate in the same job?

The fiber or CO2 laser source is controlled automatically with the laser software using the parameters in the material database (CO2 engraving, fiber engraving, CO2 cutting, fiber cutting), depending on which laser source is selected. The focal difference between the fiber and CO2 and laser source is about 0.7cm, which is stored as a set value in the software, and automatically drives the table when switched from one source to the other.

flexx lens for fiber and CO2 applications

Depending on the application being processed, CO2 and fiber applications will require different lenses and the flexx function also offers its own lens that is suitable for both laser sources. This 2.85 inch lens allows you create even the sharpest details with the highest possible quality on just about any material. Additionally, if you are utilizing both laser sources in one application, manually changing the lens is unnecessary.

grayscale matrix for laser processed paper

Where can I find individual parameters for multiple materials?

Verify that the 2.85” flexx lens is installed and focus it on the material being processed. Then, make sure to test the parameters for each separate material as needed, and you can also read here about the easiest way to locate your ideal settings.

Determine laser parameters

How can I locate the correct focus for several materials with varying thicknesses?

  1. Enter the parameters for material engraving and cutting
    First, define the engraving and cutting parameters for the material as usual by using the 16 available colors. Enter these laser settings, such as performance and speed, in the material dialog. The z-offset parameter in the material process color is used to set the correct focus for different positions on your workpiece in the material dialog.
  2. Measure thickness of material and calculate z-offset parameter
    The next step is important. Measure the thickness of the different materials for calculating the focus point. That means, the material that will be the focus is the (fixed) focal point, and the focus on the other materials is in reference to that. This difference is calculated in the parameters with the z-offset determined earlier.

Note:

We recommend focusing for the fiber laser when working with the flexx lens, because the focal point is more critical here and accuracy is extremely important. Also, the focusing tool is set to the fiber laser and when the software is then toggled to the CO2 laser source, the work table automatically adjusts to the focal point for CO2 as entered in the software, i.e., 0.7 cm lower.

Example: Setting parameters and calculating z-offset using a ballpoint pen

The clip on the ballpoint pen is marked using the fiber laser and the wooden housing is engraved using the CO2 laser. The laser parameters are determined earlier using the 2.85” flexx lens and are used as the basis for calculating the final z-offset value:
  • Metal clip (fiber engraving): P: 80%, v: 50%, 20 kHz, z-offset: 0mm
  • Wooden housing (CO2 engraving): P: 50%, v: 60%, 1000ppi, z-offset: +2mm

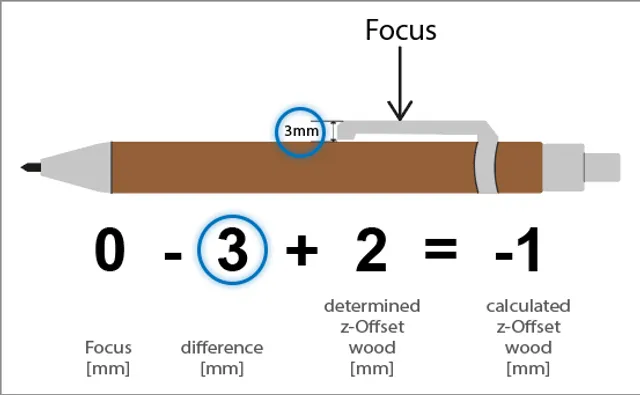

laser focal point for metal
laser focused on material

Calculate the focal difference: Material for the fiber laser source as starting point

Establishing which material to focus on first is important for the calculation of the final z-offset. We recommend focusing on the material that will be worked using the fiber laser source first, which in our example would be the metal clip.
The focal variances between the both surfaces is 0.3 cm. To even out this difference and also take into account the offset, calculate as follows:  3 mm (tolerance/height difference between materials) - 2 mm (determined z-offset) = 1 mm Note: The table needs to be raised to level out the difference, which is why a ‘minus’ has to be set. The final parameters are thus:
  • Metal clip (fiber engraving): P: 80%, v: 50%, 20 kHz, z-offset: 0mm
  • Wooden housing (CO2 engraving): P: 50%, v: 60%, 1000ppi, z-offset: -1mm
laser focused on material

Calculating the focal difference: Using the material for the CO2 laser source as starting point

Typically, focusing on the material for the CO2 laser source first is also an option, and can be particularly helpful if the height difference can accommodate the calculated z-offset of less than -0.5 cm.
