如何从AutoCAD打印图形设计到激光设备
在本“方法”页面，我们向您展示将AutoCAD数据发送至卓泰克激光设备操作是多么简单。
第1步：设置线条粗细和颜色
RGB颜色（与JobControl®材料应用数据库中相同）
对于卓泰克激光设备，在AutoCAD中切割线必须在0.001 mm - 0.00 mm之间。
![set autocad line color](/static_processed/dae43bc7ae0801c7acdb2cbc4161bdc6/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/set-line-color-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![set autocad line thickness](/static_processed/da7ab444ab5ad78205bf20cfabb92f0d/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/set-line-weight-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
第2步：打印机设置

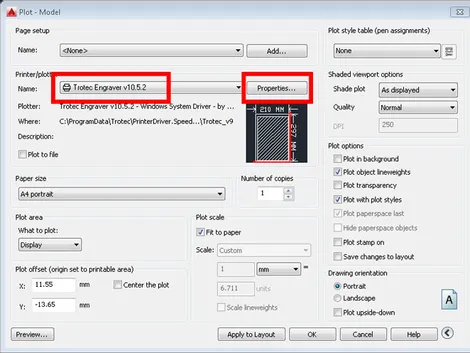

点击打印符号，打印机对话框窗口将打开。选择雕刻切割机“卓泰克激光雕刻机 v. xx.x.x”，并点击“属性...”。
在雕刻切割机配置编辑器中，点击“定制属性”。
![printer driver autocad](/static_processed/a22c4b6d8ab131c730ced75583ff0abf/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/printer-settings-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![autocad plotter configuration](/static_processed/58ddd347e073fafffb924e7cbba012dc/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/Plotter-config-editor-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
第3步：设置激光加工参数：
- 设置尺寸（宽度和高度必须高于图形尺寸）
- 如果要打印没有任何空白区的图形，请勾选“最小化至作业尺寸”。
- 点击JobControl®图标按钮以进行打印
Plotter Configuration Editor将显示，点击“确定”以继续。
- 创建一个临时PC3文件以仅应用到此点：打印机配置将仅为此次打印保存。
- 将更改保存到以下文件：打印机配置可以保存，以备下次使用。点击“确定”以
![settings jobcontrol laser software](/static_processed/4d3c250fb139bd1f8fd32ace7f5ebb16/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/Laser-settings-Trotec-JobControl.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![pc3 file save laser](/static_processed/6fe94c8dea8809c8ad3496d5d2349a14/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/laser-from-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![autocad plot area select](/static_processed/50936697199d844a321a6b57bc52f3c6/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/plot-area-settings-AutoCAD.jpg","edits":{"extract":{"top":0,"left":0,"width":662,"height":496},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
第4步：绘图区设置
- 选择绘制区域：
- 显示：将打印实际可视区。
- 范围：所有要打印的图形。
- 窗口：选择应打印的区域。
- 注意绘图比例1:1
- 必要时，将绘图居中
- 将作业数据发送至JobControl®点击“确定”
