Cara mencetak dari AutoCAD
Dalam cara ini, kami menunjukkan kepada Anda betapa mudahnya mengirim data AutoCAD ke mesin laser Trotec.
Langkah 1: Tentukan tebal dan warna garis
Gunakan warna RGB (sama seperti di basis data bahan JobControl®)

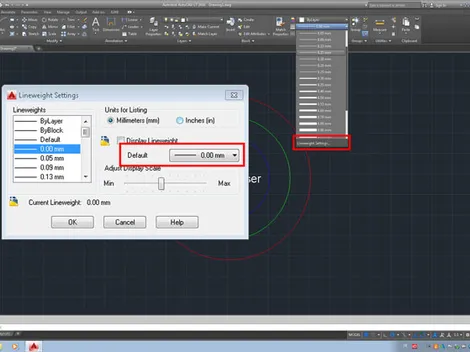

Untuk Laser Trotec, garis potong harus 0,001 mm - dalam AutoCAD 0,00 mm
![set autocad line color](/static_processed/dae43bc7ae0801c7acdb2cbc4161bdc6/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/set-line-color-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![set autocad line thickness](/static_processed/da7ab444ab5ad78205bf20cfabb92f0d/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/set-line-weight-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
Langkah 2: Pengaturan Pencetak

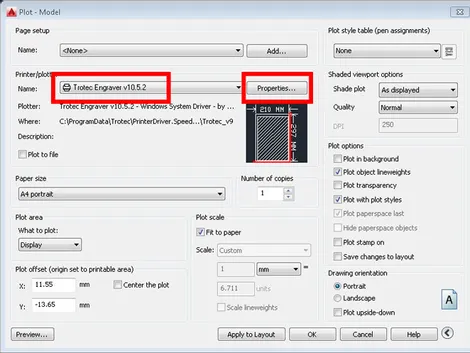

Klik pada simbol pencetakan dan jendela dialog pencetak akan terbuka. Pilih plotter "Pengukir Trotec v. Xx.x.x" dan klik "Properti...".

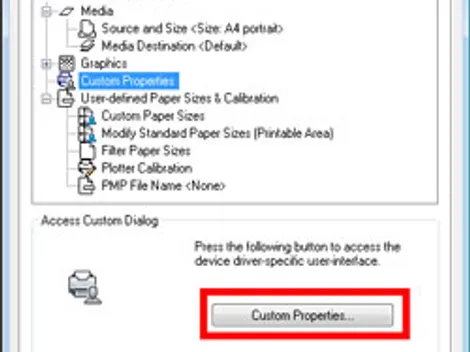

Klik pada "Properti Kustom" di Editor Konfigurasi Plotter.
![printer driver autocad](/static_processed/a22c4b6d8ab131c730ced75583ff0abf/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/printer-settings-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![autocad plotter configuration](/static_processed/58ddd347e073fafffb924e7cbba012dc/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/Plotter-config-editor-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
Langkah 3: Tentukan parameter laser:

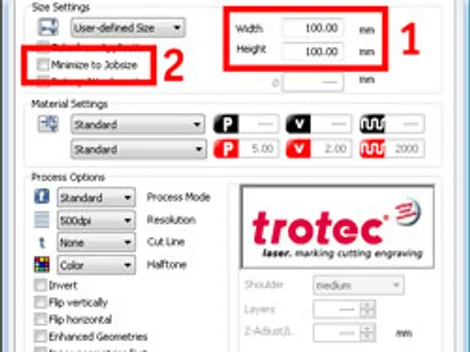

- Tentukan ukurannya (lebar dan tinggi harus lebih tinggi dari ukuran grafis)
- Tandai "Minimalkan ke Ukuran pekerjaan" jika Anda ingin mencetak grafis tanpa area kosong.
- Klik tombol logo JobControl® untuk mencetak
Editor Konfigurasi Plotter akan muncul, klik "OK" untuk melanjutkan.

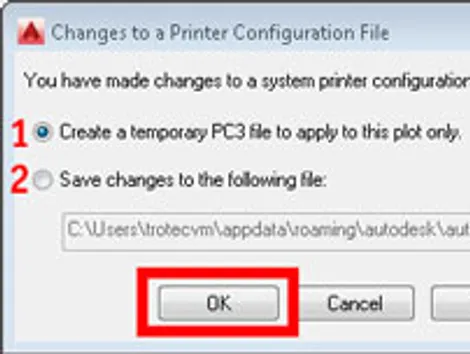

- Buat file PC3 sementara untuk diterapkan pada plot ini saja: Konfigurasi pencetak hanya akan disimpan untuk cetakan ini.
- Simpan perubahan ke file berikut: Konfigurasi pencetak dapat disimpan, untuk digunakan lagi lain kali. Klik "OK" untuk melanjutkan.
![settings jobcontrol laser software](/static_processed/4d3c250fb139bd1f8fd32ace7f5ebb16/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/Laser-settings-Trotec-JobControl.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![pc3 file save laser](/static_processed/6fe94c8dea8809c8ad3496d5d2349a14/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/laser-from-AutoCAD.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![autocad plot area select](/static_processed/50936697199d844a321a6b57bc52f3c6/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/FAQs/Printing-from-AutoCAD/plot-area-settings-AutoCAD.jpg","edits":{"extract":{"top":0,"left":0,"width":662,"height":496},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Langkah 4: Pengaturan area plot
- Pilih area plot:
- Display: Daerah yang terlihat sebenarnya sedang dicetak.
- Taraf: Semua grafis akan dicetak.
- Jendela: Pilih area yang akan dicetak.
- Pikirkan skala plot 1: 1
- Pusatkan plot jika perlu
- Untuk mengirim data pekerjaan ke JobControl® klik OK
