Рабочие поля рабочих станций SpeedMarker
![](/static_processed/f0cd6a8a2baf2daf644c2e395ff6dafb/speedmarker-laser-workstations.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/SpeedMarker/SpeedMarker-Laser-workstations.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Лазерные станции SpeedMarker имеют рабочие поля различных размеров для маркировки компонентов и элементов. Размер рабочего поля зависит от следующих факторов:
- Версия корпуса: SpeedMarker 700, 1300, 1350, 1600
- Конфигурация оси: с осью x или с осями x и y
- Выбранная линза: определяет поле маркировки
Передвижение осей (=сегментация) позволяет использовать все рабочее поле. Управление осуществляется при помощи программного обеспечения для маркировки SpeedMark. Ниже вы найдете обзор соответствующих рабочих полей в зависимости от конфигурации и оснащения лазерной рабочей станции.
SpeedMarker 700: обзор полей маркировки и рабочих полей
На линзу, с осями x или x и y
| Линза | Поле маркировки | Рабочее поле: Ось x | Рабочее поле: Оси x и y |
|---|---|---|---|
| F-100 | 70 x 70 mm | 390 x 70 mm | 390 x 350 mm |
| F-160 | 120 x 120 mm | 440 x 120 mm | 440 x 400 mm |
| F-254 | 190 x 190 mm | 510 x 190 mm | 510 x 435 mm |
| F-330 | 240 x 240 mm | 560 x 240 mm | 560 x 460 mm |
| F-420 | 310 x 310 mm | 580 x 310 mm | 580 x 495 mm |
SpeedMarker 700 с осью x
SpeedMarker 700 с осями x и y
![SpeedMarker 700: F-100 with x-axis](/static_processed/fbb1b7d3028416e228e25f5d8fd70aff/speedmarker-700:-f-100-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700-F100-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-100 with x- and y-axis](/static_processed/52d3fb338c1fd76b27310be756950788/speedmarker-700:-f-100-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F100-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-160 with x-axis](/static_processed/7f369994085b7752577c3d73be98259d/speedmarker-700:-f-160-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F160-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-160 with x- and y-axis](/static_processed/fb9270d811376328357a3bd807449f03/speedmarker-700:-f-160-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F160-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-254 with x-axis](/static_processed/c6bdf6c195df98a0e2c4dce8acc84a56/speedmarker-700:-f-254-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F254-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-254 with x- and y-axis](/static_processed/485aee59a99a70920a084217b841af52/speedmarker-700:-f-254-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F254-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-330 with x-axis](/static_processed/414789d6585c9973ac1f22a14c2476ba/speedmarker-700:-f-330-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F330-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-330 with x- and y-axis](/static_processed/3ee5a22433a693e9ae014b423535db31/speedmarker-700:-f-330-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F330-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-420 with x-axis](/static_processed/91e7fc030e7b97ba8814785d60619ca4/speedmarker-700:-f-420-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F420-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-420 with x- and y-axis](/static_processed/ce37e6eab9eb63204b6c62ca6ae18351/speedmarker-700:-f-420-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F420-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1300: обзор полей маркировки и рабочих полей
На линзу, с осями x или x и y
| Линза | Поле маркировки | Рабочее поле: Ось x | Рабочее поле: Оси x и y |
|---|---|---|---|
| F-100 | 70 x 70 mm | 880 x 70 mm | 880 x 395 mm |
| F-160 | 120 x 120 mm | 930 x 120 mm | 930 x 445 mm |
| F-254 | 190 x 190 mm | 1010 x 190 mm | 1000 x 450 mm |
| F-330 | 240 x 240 mm | 1050 x 240 mm | 1000 x 450 mm |
| F-420 | 310 x 310 mm | 1100 x 310 mm | 1000 x 450 mm |
SpeedMarker 1300 с осью x
SpeedMarker 1300 с осями x и y
![SpeedMarker 1300: F-100 with x-axis](/static_processed/4085105031417e5bf1ef10d2dc1e7fcd/speedmarker-1300:-f-100-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F100-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-100 with x- and y-axis](/static_processed/8e9bf928fd8b6f37301b3c2a503062e8/speedmarker-1300:-f-100-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F100-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-160 with x-axis](/static_processed/1c069007921c3dc661aa109b53e8368e/speedmarker-1300:-f-160-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F160-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-160 with x- and y-axis](/static_processed/491a2c23b26ed9bc20b2a0630eb066ce/speedmarker-1300:-f-160-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F160-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-254 with x-axis](/static_processed/4d48739c0699041491b7ca5b70849d54/speedmarker-1300:-f-254-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300-F254-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-254 with x- and y-axis](/static_processed/ca2788bd5e5416ccc5ea342d80f07865/speedmarker-1300:-f-254-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F254-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-330 with x-axis](/static_processed/59273bdf9a9874c2b3d238d55d46f89c/speedmarker-1300:-f-330-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F330-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})

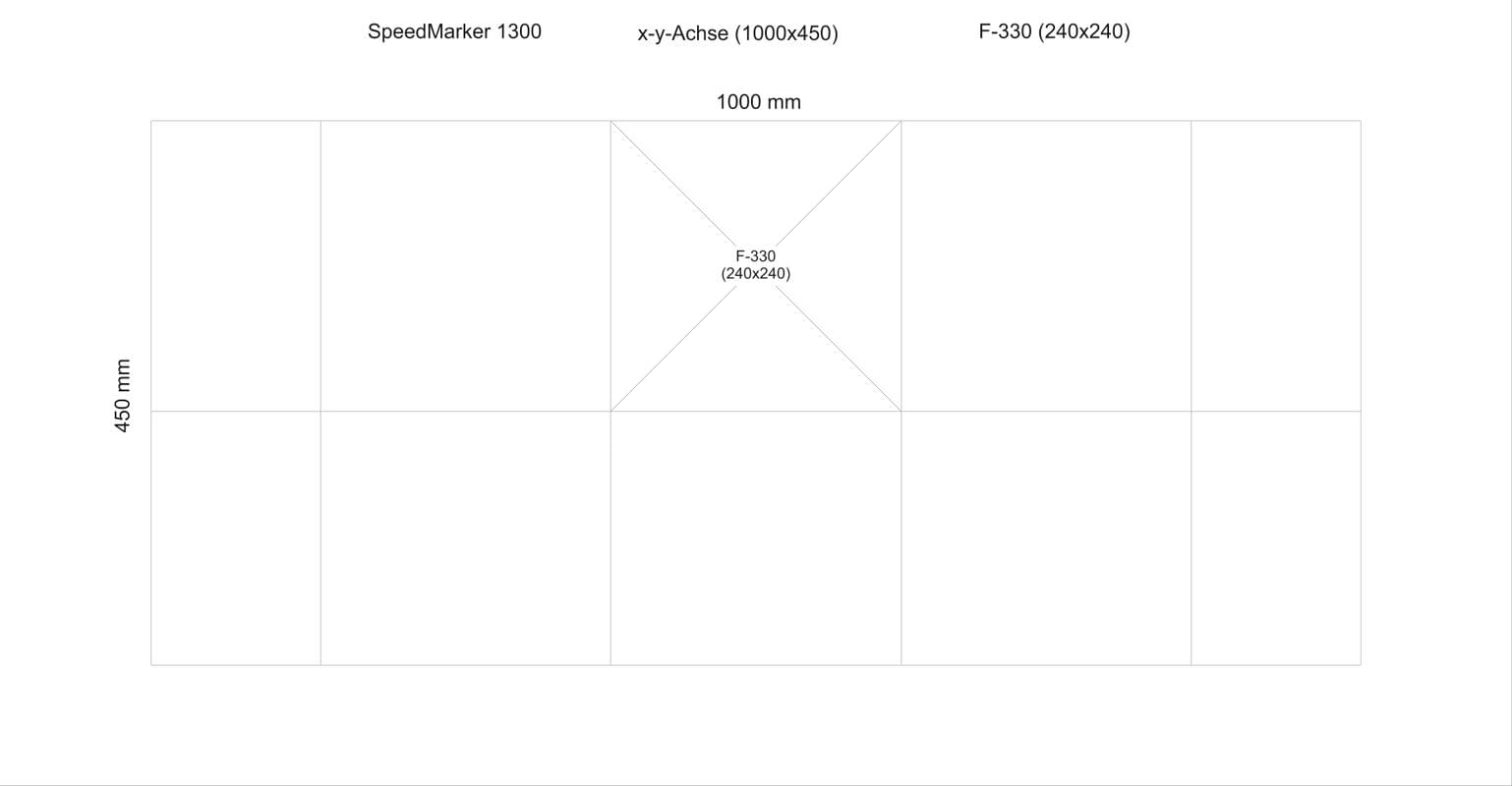

![](/static_processed/c4cc1519de8b5766dd6ad39b63ec62bc/speedmarker-1300_f330-xy.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F330-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-420 with x-axis](/static_processed/51d69798cdc679231d7e8ee2816e00d2/speedmarker-1300:-f-420-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F420-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-420 with x- and y-axis](/static_processed/73b5e27517b633e339594c37230f97d3/speedmarker-1300:-f-420-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F420-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1350: обзор полей маркировки и рабочих полей
На линзу, с осями x и y
| Линза | Поле маркировки | Рабочее поле: Оси x и y | ||
|---|---|---|---|---|
| Стандартный | Раздвижной | Раздвижной двойной челночный стол | ||
| F-100 | 70 x 70 mm | 880 x 470 mm | 880 x 320 mm | 434 x 320 mm |
| F-160 | 120 x 120 mm | 930 x 500 mm | 930 x 370 mm | 459 x 370 mm |
| F-254 | 190 x 190 mm | 1000 x 500 mm | 1000 x 375 mm | 494 x 375 mm |
| F-330 | 240 x 240 mm | 1000 x 500 mm | 1000 x 375 mm | 500 x 375 mm |
| F-420 | 310 x 310 mm | 1000 x 500 mm | 1000 x 375 mm | 500 x 375 mm |
Базовая версия SpeedMarker 1350
SpeedMarker 1350:
Раздвижной стол
SpeedMarker 1350:
Раздвижной двойной челночный стол
![SpeedMarker 1300 xl: F-100 basic version](/static_processed/185aa795a0da939d62783866a1965648/speedmarker-1300-xl:-f-100-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-100 with protruding, pullout shuttle table](/static_processed/9f034cf09a5cb88c9740416d9197f455/speedmarker-1300-xl:-f-100-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})

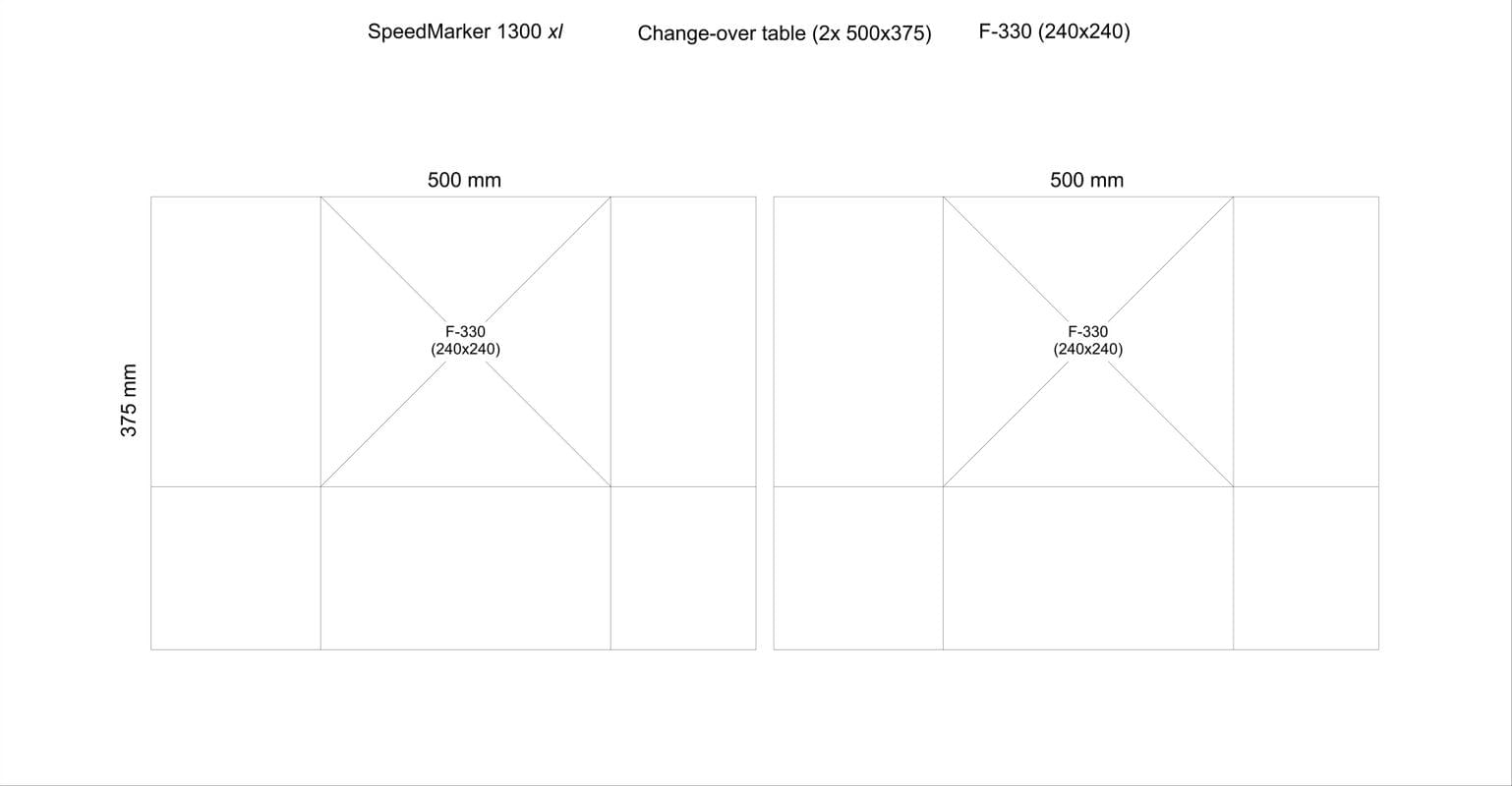

![SpeedMarker 1300 xl: F-100 with double shuttle table](/static_processed/94f2fe56ae03f29295e5a042b955507c/speedmarker-1300-xl:-f-100-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 basic version](/static_processed/29276edb0d1e4392f9591d33128be431/speedmarker-1300-xl:-f-160-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 with protruding, pullout shuttle table](/static_processed/f30da0c34dda6c53aa7d3b32b6ee8738/speedmarker-1300-xl:-f-160-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 with double shuttle table](/static_processed/37ba673512e898848a7c379a6ddd709b/speedmarker-1300-xl:-f-160-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 basic version](/static_processed/c2c5fc2dc7ee449f87308c9977445782/speedmarker-1300-xl:-f-254-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F254.jpg","edits":{"resize":{"width":940,"fit":"cover"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 with protruding, pullout shuttle table](/static_processed/8ed0ea8663f8f434d6a727399320021f/speedmarker-1300-xl:-f-254-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F254.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 with double shuttle table](/static_processed/5eb0c5ba2c791510e91110a6df6ae1fa/speedmarker-1300-xl:-f-254-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F254.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 basic version](/static_processed/6cb878a25a0b1e30d18218c5649f6755/speedmarker-1300-xl:-f-330-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 with protruding, pullout shuttle table](/static_processed/0e85b82f5e247cf00ce90593f7ae0344/speedmarker-1300-xl:-f-330-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 with double shuttle table](/static_processed/3e69040ef74e310f6cf15cbb511017c8/speedmarker-1300-xl:-f-330-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 basic version](/static_processed/e315f4aedfaab18365156963fe1d88cb/speedmarker-1300-xl:-f-420-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 with protruding, pullout shuttle table](/static_processed/0e28281e3dcd07247215a13225987307/speedmarker-1300-xl:-f-420-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 with double shuttle table](/static_processed/a42e4284b1aac8a26a5ed84fe81fe836/speedmarker-1300-xl:-f-420-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1600: обзор полей маркировки и рабочих полей
На линзу, с осями x и y
| Линза | Поле маркировки | Рабочее поле: Оси x и y |
|---|---|---|
| F-100 | 70 x 70 | 1180 x 420 |
| F-160 | 120 x 120 | 1230 x 450 |
| F-254 | 190 x 190 | 1300 x 450 |
| F-330 | 240 x 240 | 1300 x 450 |
| F-420 | 310 x 310 | 1300 x 450 |
SpeedMarker 1600 с осями x и y

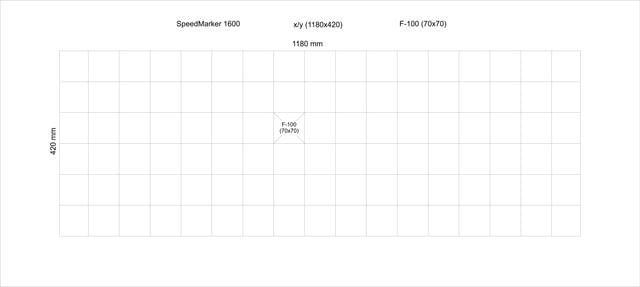

![](/static_processed/0e36e4daccf054358b9ec025552789c0/speedmarker-1600_f100.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F100.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Линза: F-100
Поле маркировки: 70 x 70 mm
![](/static_processed/c9666c5940538f2e5e23e54862a711d3/speedmarker-1600_f160.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F160.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Линза: F-160
Поле маркировки: 120 x 120 mm
![](/static_processed/9d128dda2c11184fc0a08993419f6a15/speedmarker-1600_f254.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F254.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Линза: F-254
Поле маркировки: 190 x 190 mm
![](/static_processed/b3b4b7879e9a9130b89da54e08c278ce/speedmarker-1600_f330.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F330.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Линза: F-330
Поле маркировки: 240 x 240 mm
![](/static_processed/ac5e1090219dff8d02e4cc1d20c82387/speedmarker-1600_f420.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F420.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Линза: F-420
Поле маркировки: 310 x 310 mm
