Working areas of the SpeedMarker laser workstations
![](/static_processed/f0cd6a8a2baf2daf644c2e395ff6dafb/speedmarker-laser-workstations.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/SpeedMarker/SpeedMarker-Laser-workstations.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
The SpeedMarker laser workstations offer working areas of various sizes for the marking of components and elements. The working area size depends on following factors:
- housing version: SpeedMarker 700, 1300, 1350, 1600
- axis configuration: with x-axis or with x- and Y-axes
- selected lens: defines the marking field
Moving the axes (=segmentation) allows using the entire working area. The control is carried out via the SpeedMark marking software. Below, you will find an overview of the respective working areas, depending on the configuration and equipment of the laser workstation
SpeedMarker 700: Overview of marking fields and working areas
per lens, with x- or x-/y-axes
| Lens | Marking field | Working area: x-axis | Working area: x-/y-axes |
|---|---|---|---|
| F-100 | 70 x 70 mm | 390 x 70 mm | 390 x 350 mm |
| F-160 | 120 x 120 mm | 440 x 120 mm | 440 x 400 mm |
| F-254 | 190 x 190 mm | 510 x 190 mm | 510 x 435 mm |
| F-330 | 240 x 240 mm | 560 x 240 mm | 560 x 460 mm |
| F-420 | 310 x 310 mm | 580 x 310 mm | 580 x 495 mm |
SpeedMarker 700 with x-axis
SpeedMarker 700 with x- and y-axes
![SpeedMarker 700: F-100 with x-axis](/static_processed/fbb1b7d3028416e228e25f5d8fd70aff/speedmarker-700:-f-100-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700-F100-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-100 with x- and y-axis](/static_processed/52d3fb338c1fd76b27310be756950788/speedmarker-700:-f-100-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F100-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-160 with x-axis](/static_processed/7f369994085b7752577c3d73be98259d/speedmarker-700:-f-160-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F160-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-160 with x- and y-axis](/static_processed/fb9270d811376328357a3bd807449f03/speedmarker-700:-f-160-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F160-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-254 with x-axis](/static_processed/c6bdf6c195df98a0e2c4dce8acc84a56/speedmarker-700:-f-254-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F254-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-254 with x- and y-axis](/static_processed/485aee59a99a70920a084217b841af52/speedmarker-700:-f-254-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F254-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-330 with x-axis](/static_processed/414789d6585c9973ac1f22a14c2476ba/speedmarker-700:-f-330-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F330-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-330 with x- and y-axis](/static_processed/3ee5a22433a693e9ae014b423535db31/speedmarker-700:-f-330-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F330-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-420 with x-axis](/static_processed/91e7fc030e7b97ba8814785d60619ca4/speedmarker-700:-f-420-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F420-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 700: F-420 with x- and y-axis](/static_processed/ce37e6eab9eb63204b6c62ca6ae18351/speedmarker-700:-f-420-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-700_F420-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1300: Overview of marking fields and working areas
per lens, mit x- or x-/y-axes
| Lens | Marking field | Working area: x-axis | Working area: x-/y-axes |
|---|---|---|---|
| F-100 | 70 x 70 mm | 880 x 70 mm | 880 x 395 mm |
| F-160 | 120 x 120 mm | 930 x 120 mm | 930 x 445 mm |
| F-254 | 190 x 190 mm | 1010 x 190 mm | 1000 x 450 mm |
| F-330 | 240 x 240 mm | 1050 x 240 mm | 1000 x 450 mm |
| F-420 | 310 x 310 mm | 1100 x 310 mm | 1000 x 450 mm |
SpeedMarker 1300 with x-axis
SpeedMarker 1300 with x- and y-axes
![SpeedMarker 1300: F-100 with x-axis](/static_processed/4085105031417e5bf1ef10d2dc1e7fcd/speedmarker-1300:-f-100-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F100-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-100 with x- and y-axis](/static_processed/8e9bf928fd8b6f37301b3c2a503062e8/speedmarker-1300:-f-100-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F100-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-160 with x-axis](/static_processed/1c069007921c3dc661aa109b53e8368e/speedmarker-1300:-f-160-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F160-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-160 with x- and y-axis](/static_processed/491a2c23b26ed9bc20b2a0630eb066ce/speedmarker-1300:-f-160-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F160-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-254 with x-axis](/static_processed/4d48739c0699041491b7ca5b70849d54/speedmarker-1300:-f-254-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300-F254-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-254 with x- and y-axis](/static_processed/ca2788bd5e5416ccc5ea342d80f07865/speedmarker-1300:-f-254-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F254-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})

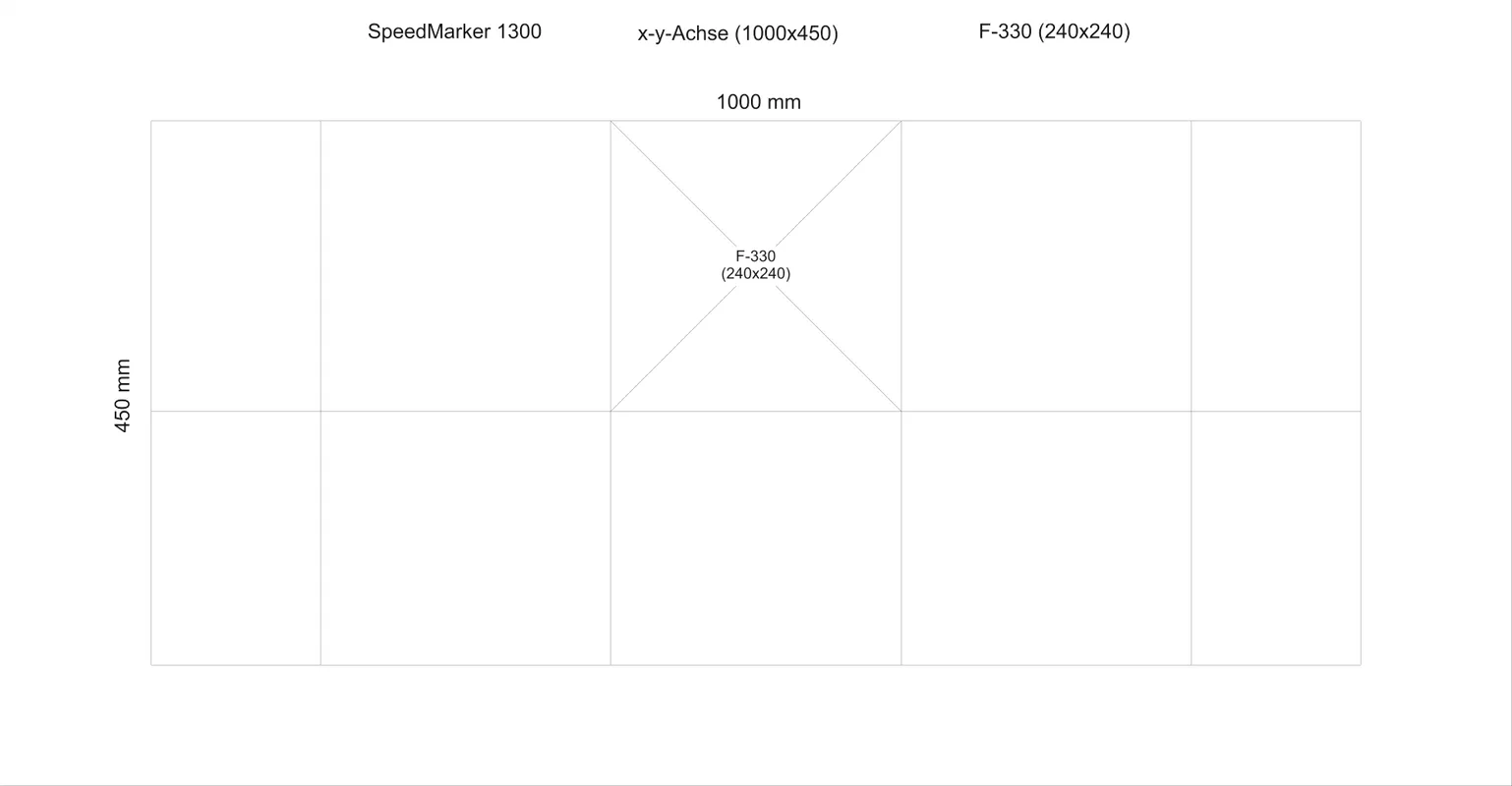

![SpeedMarker 1300: F-330 with x-axis](/static_processed/59273bdf9a9874c2b3d238d55d46f89c/speedmarker-1300:-f-330-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F330-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![](/static_processed/c4cc1519de8b5766dd6ad39b63ec62bc/speedmarker-1300_f330-xy.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F330-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-420 with x-axis](/static_processed/51d69798cdc679231d7e8ee2816e00d2/speedmarker-1300:-f-420-with-x-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F420-x.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300: F-420 with x- and y-axis](/static_processed/73b5e27517b633e339594c37230f97d3/speedmarker-1300:-f-420-with-x-and-y-axis.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300_F420-xy.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1350: Overview of marking fields and working areas
per lens, with x-/y-axes
| Lens | Marking field | Working area with x-/y-axes | ||
|---|---|---|---|---|
| Basic | Protruding, pullout shuttle table | Double shuttle table | ||
| F-100 | 70 x 70 mm | 880 x 470 mm | 880 x 320 mm | 434 x 320 mm |
| F-160 | 120 x 120 mm | 930 x 500 mm | 930 x 370 mm | 459 x 370 mm |
| F-254 | 190 x 190 mm | 1000 x 500 mm | 1000 x 375 mm | 494 x 375 mm |
| F-330 | 240 x 240 mm | 1000 x 500 mm | 1000 x 375 mm | 500 x 375 mm |
| F-420 | 310 x 310 mm | 1000 x 500 mm | 1000 x 375 mm | 500 x 375 mm |
SpeedMarker 1350:
Basic
SpeedMarker 1350:
Protruding, pullout shuttle table
SpeedMarker 1350:
Double shuttle table
![SpeedMarker 1300 xl: F-100 basic version](/static_processed/185aa795a0da939d62783866a1965648/speedmarker-1300-xl:-f-100-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-100 with protruding, pullout shuttle table](/static_processed/9f034cf09a5cb88c9740416d9197f455/speedmarker-1300-xl:-f-100-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-100 with double shuttle table](/static_processed/94f2fe56ae03f29295e5a042b955507c/speedmarker-1300-xl:-f-100-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F100.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 basic version](/static_processed/29276edb0d1e4392f9591d33128be431/speedmarker-1300-xl:-f-160-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 with protruding, pullout shuttle table](/static_processed/f30da0c34dda6c53aa7d3b32b6ee8738/speedmarker-1300-xl:-f-160-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-160 with double shuttle table](/static_processed/37ba673512e898848a7c379a6ddd709b/speedmarker-1300-xl:-f-160-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F160.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 basic version](/static_processed/c2c5fc2dc7ee449f87308c9977445782/speedmarker-1300-xl:-f-254-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F254.jpg","edits":{"resize":{"width":940,"fit":"cover"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 with protruding, pullout shuttle table](/static_processed/8ed0ea8663f8f434d6a727399320021f/speedmarker-1300-xl:-f-254-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F254.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-254 with double shuttle table](/static_processed/5eb0c5ba2c791510e91110a6df6ae1fa/speedmarker-1300-xl:-f-254-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F254.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 basic version](/static_processed/6cb878a25a0b1e30d18218c5649f6755/speedmarker-1300-xl:-f-330-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 with protruding, pullout shuttle table](/static_processed/0e85b82f5e247cf00ce90593f7ae0344/speedmarker-1300-xl:-f-330-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-330 with double shuttle table](/static_processed/3e69040ef74e310f6cf15cbb511017c8/speedmarker-1300-xl:-f-330-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F330.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 basic version](/static_processed/e315f4aedfaab18365156963fe1d88cb/speedmarker-1300-xl:-f-420-basic-version.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-standard_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 with protruding, pullout shuttle table](/static_processed/0e28281e3dcd07247215a13225987307/speedmarker-1300-xl:-f-420-with-protruding-pullout-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-extended-table_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
![SpeedMarker 1300 xl: F-420 with double shuttle table](/static_processed/a42e4284b1aac8a26a5ed84fe81fe836/speedmarker-1300-xl:-f-420-with-double-shuttle-table.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1300xl-change-over-table_F420.jpg","edits":{"resize":{"width":1680,"height":800,"fit":"inside"}},"outputFormat":{"format":"webp"}})
SpeedMarker 1600: Overview of marking fields and working areas
per lens, with x-/y-axes
| Lens | Marking field | Working area: x-/y-axes |
|---|---|---|
| F-100 | 70 x 70 | 1180 x 420 |
| F-160 | 120 x 120 | 1230 x 450 |
| F-254 | 190 x 190 | 1300 x 450 |
| F-330 | 240 x 240 | 1300 x 450 |
| F-420 | 310 x 310 | 1300 x 450 |
SpeedMarker 1600 with x- and y-axes
![](/static_processed/0e36e4daccf054358b9ec025552789c0/speedmarker-1600_f100.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F100.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Lens: F-100
Marking field: 70 x 70 mm
![](/static_processed/c9666c5940538f2e5e23e54862a711d3/speedmarker-1600_f160.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F160.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Lens: F-160
Marking field: 120 x 120 mm
![](/static_processed/9d128dda2c11184fc0a08993419f6a15/speedmarker-1600_f254.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F254.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Lens: F-254
Marking field: 190 x 190 mm
![](/static_processed/b3b4b7879e9a9130b89da54e08c278ce/speedmarker-1600_f330.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F330.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Lens: F-330
Marking field: 240 x 240 mm
![](/static_processed/ac5e1090219dff8d02e4cc1d20c82387/speedmarker-1600_f420.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Laser_Accessories/working-areas-speedmarker/SpeedMarker-1600_F420.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Lens: F-420
Marking field: 310 x 310 mm
