Table lamp made of paper

Add more value to a standard IKEA table lamp by adding a laser-cut lamp shade.

table lamp laser cut from paper

Table lamp made of paper

Add more value to a standard IKEA table lamp by adding a laser-cut lamp shade.

Preparation

Required material
  • Photo cardboard or thick paper (approx. 180 - 300 g/m²)
  • IKEA table lamp ARRIE with LED bulb
  • Material to cover the engraving table (e.g. paper)
Machine used
  • Trotec Speedy 400
  • 120 Watt
Tips
  • Use a cutting table (honeycomb or acrylic grid) for best cutting results
  • Use a 1.5 inch lens
parameter-paper.zip

ZIP

Download now

PDF

Download now

Step by step

laser cut table lamp
Step 1

Step 1: Import /create design template

Import our design templates into your graphic program and adapt it to the size of your lamp shade. Send it to the laser with the recommended laser parameters. The parameters might vary depending on the machine used and the available laser power.

Download PDF file

TIP:

Once you have positioned your paper into the laser machine, switch on the exhaust and cover the rest of the table with white paper to increase the exhaust performance.

paper ceiling lamp laser cut
Step 2

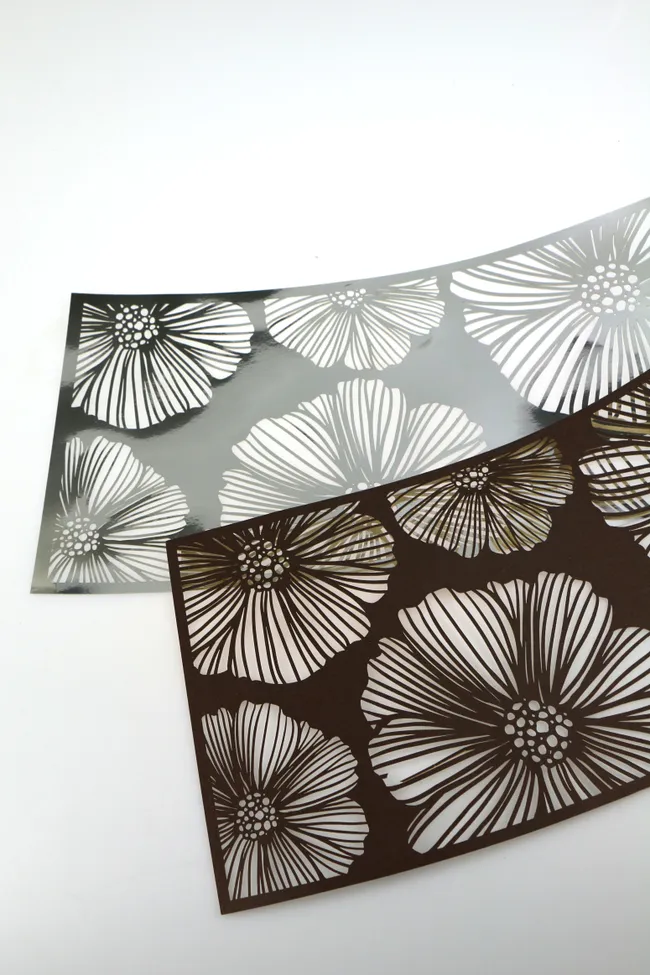

Step 2: Laser Process

Cut out the design from the paper.

LASER PARAMETERS:

  • power 17%
  • speed 2.5%
  • frequency 1000 Hz
  • Air Assist on

TIPS:

Select these two options in JobControl® to get perfect cutting results.

  • Optimised geometries
  • Inner geometries first
table lamp laser cutting
Step 3

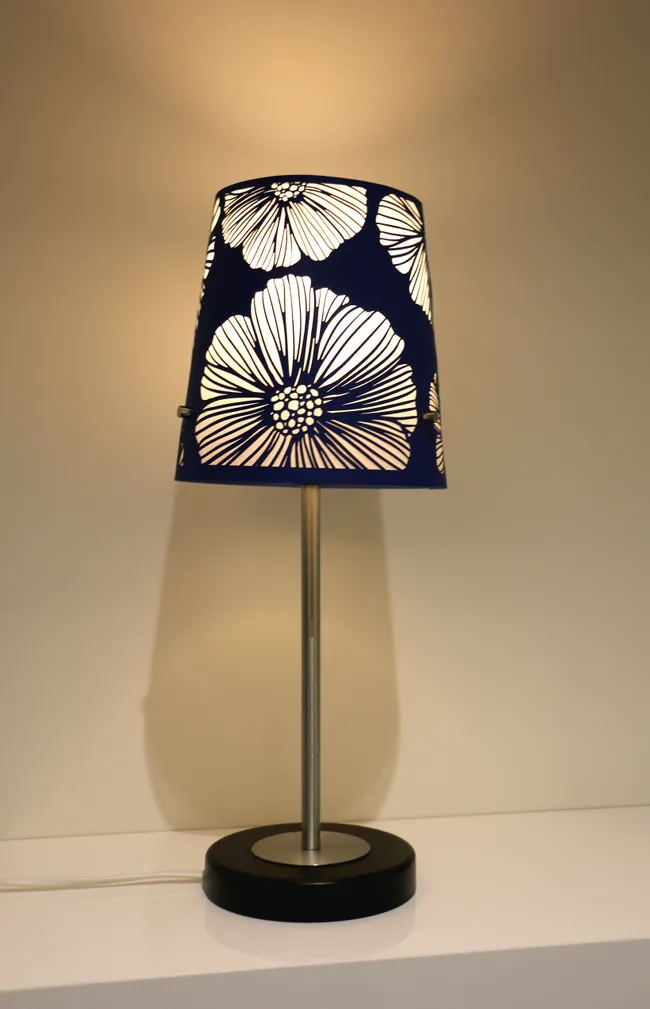

Step 3: Assemble your lamp

Remove the standard lamp shade and cover it with your laser cut shade. Mount it on the lampstand.

Important:

  • Only use a LED bulb
  • Make sure to have enough distance between the bulb and the lamp shade
