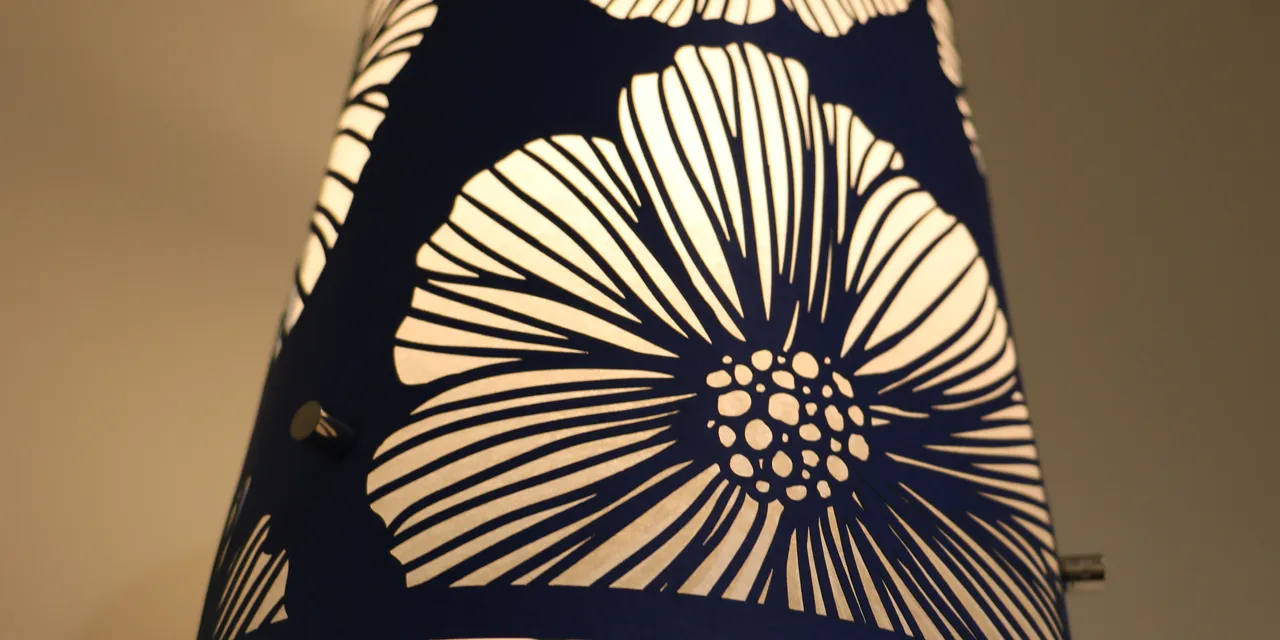

Stona lampa napravljena od papira
Dodajte više vrijednosti standardnoj IKEA stolnoj lampi dodavanjem sjene lampi.
Priprema
Potrebni materijal
- Foto karton ili debeo papir (oko 180 - 300 g/m²)
- Stona lampa IKEA ARRIE sa LED sijalicom
- Materijal za pokrivanje stola za graviranje npr. papir)
Mašina korišćena
- Trotec Speedy 400
- 120 Watt-i
Prijedlozi
- Koristite sto za sječenje (saćati ili akril) za najbolje rezulatate sječenja
- Koristite 1.5" sočivo
![](/static_processed/0ef103f04a48892c57e1f04a96fd09b4/.pdf?{"image":"https://backend.troteclaser.com/static/_processed_/7/2/csm_table-lamp_c484b2227e.png","edits":{"resize":{"width":630,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Detaljni vodič
![laser cut table lamp](/static_processed/2c1bc2af768f4a0585fe6ab74859b035/.JPG?{"image":"https://backend.troteclaser.com/static/images/knowledge/diy-samples/paper-table-lamp/table-lamp-paper-cutting.JPG","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "table-lamp-paper-cutting.JPG")
Korak 1

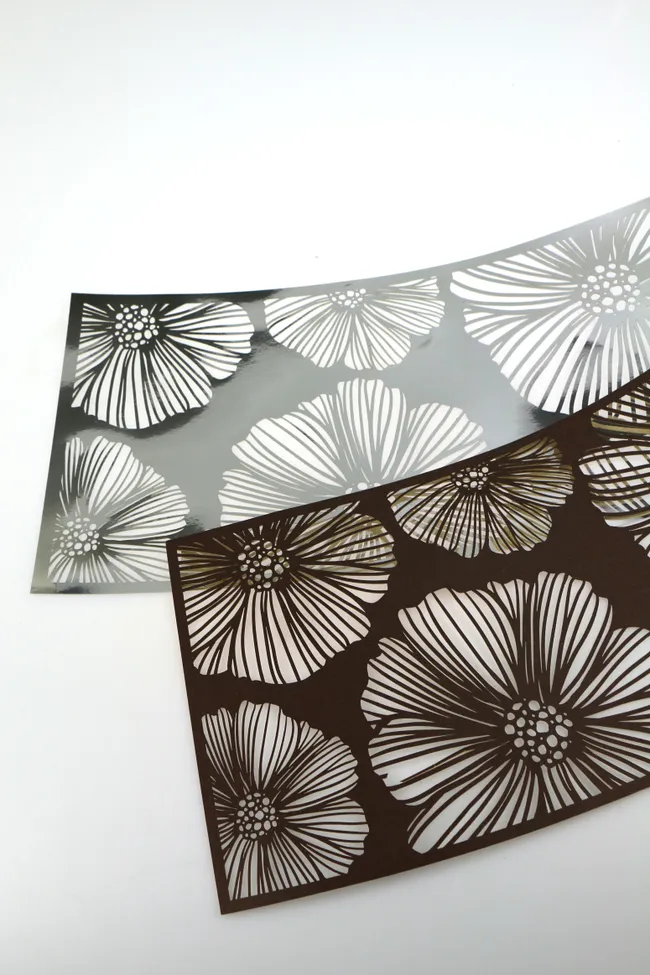

Korak 1: Importovanje/kreiranje šablona
Uvezite naše šablone dizajna u Vaš grafički program i prilagodite veličini Vaše lampe. Pošaljite iste laseru sa preporučenim parametrima lasera. Parametri se mogu razlikovati u zavisnosti od korišćene mašine i raspoložive snage lasera.
PRIJEDLOG:
Kada postavite papir u lasersku mašinu, uključite izduvni sistem i pokrite ostatak stola bijelim papirom kako biste povećali izduvne performanse.
![paper ceiling lamp laser cut](/static_processed/9300054b6b1ebebf89fb928d9b91301a/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/diy-samples/paper-table-lamp/Driver-paper-Lamp-EN.jpg","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "Driver-paper-Lamp-EN.jpg")
Korak 2
Korak 2: Laserska obrada
Izrežite dizajn iz papira.

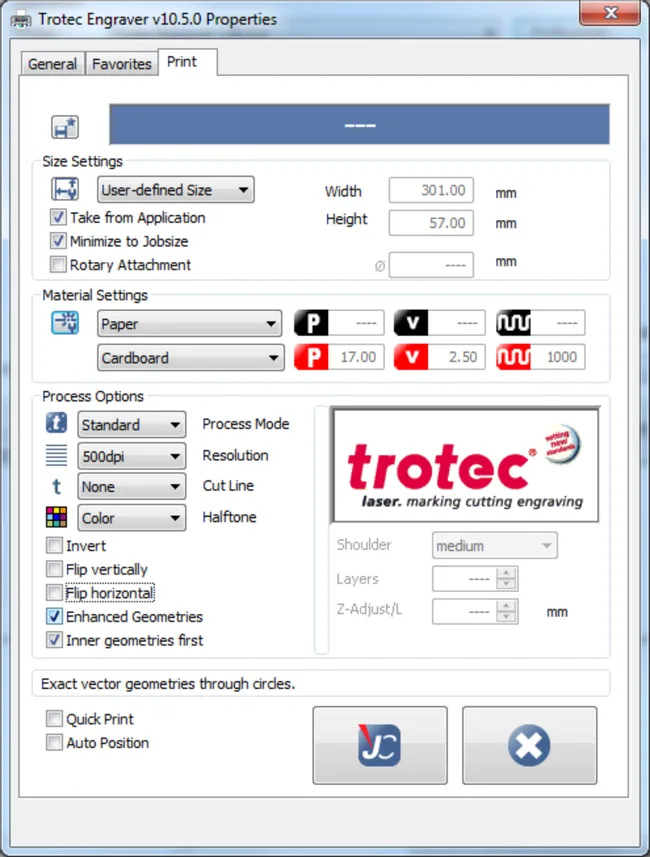

PARAMETRI LASERA:
- SNAGA 17%
- BRZINA 2.5%
- FREKVENCIJA 1000 HZ
PRIJEDLOZI:
Odaberite ove dvije opcije u JobControl® kako biste dobili savršene rezultate sječenja.
- Optimizovane geometrije
- Unutrašnje geometrije prvo
![table lamp laser cutting](/static_processed/8d50e16eb2e28cbb9fe2ab526c040c50/.JPG?{"image":"https://backend.troteclaser.com/static/images/knowledge/diy-samples/paper-table-lamp/laser-cut-paper-table-lamp-with-stand.JPG","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "laser-cut-paper-table-lamp-with-stand.JPG")
Korak 3

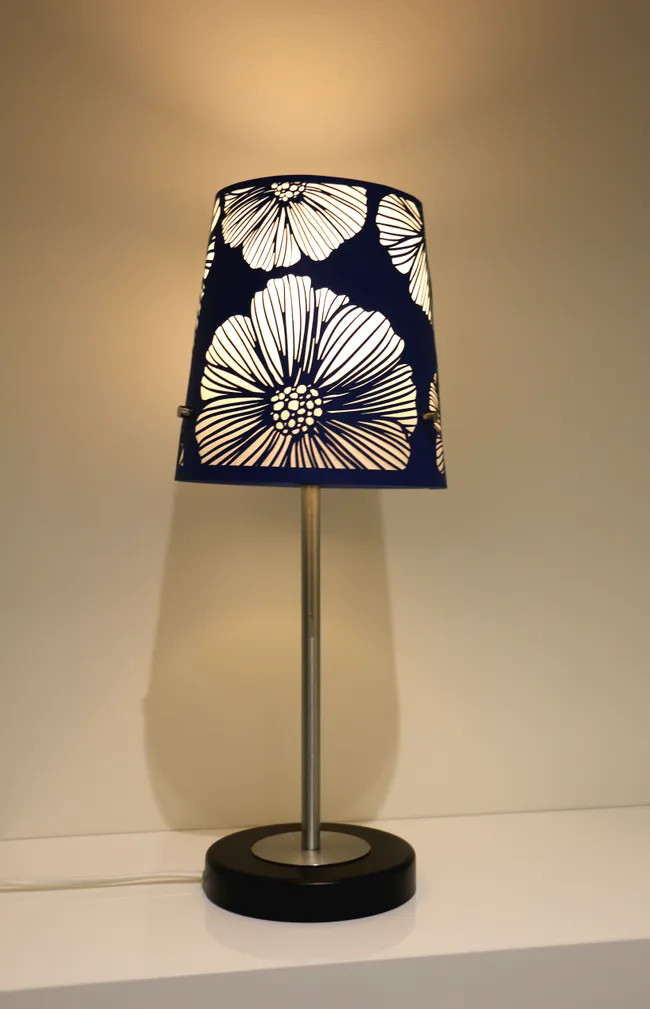

Korak 3: Sastavite Vašu lampu
Uklonite standardni zastor sa lampe i pokrijte je s novim zastorom. Postavite na lampu.
Važno:
- Koristite samo LED sijalicu
- Osigurajte da imate dovoljno prostora između sijalice i zastora lampe
