Paper Packaging

Make beautiful, creative and classy paper packaging using custom coloured paper.

Preparation

You Will Need

Uncoated, coloured paper, 130g
Paper glue or double-sided adhesive discs

Machine Used

Speedy 360, 80 Watt
2" lens
Aluminium grit cutting table

You are free to use any machine from the Speedy series to create this sample.

Tips

Use the grayscale matrix to find the correct parameters for your chosen material

paper-packaging.zip

ZIP

Download now

ZIP

Download now

Step by step

Step 1

Step 1: Import / Create the Design Template

Import our template into your chosen graphics program. Adapt it to yours or your customers’ requirements and send the job to your laser engraving machine.

Print Settings:

Process Mode	Resolution	Cut Line
Standard	333 dpi	None

Halftone	Others
Black & White	-

Step 2

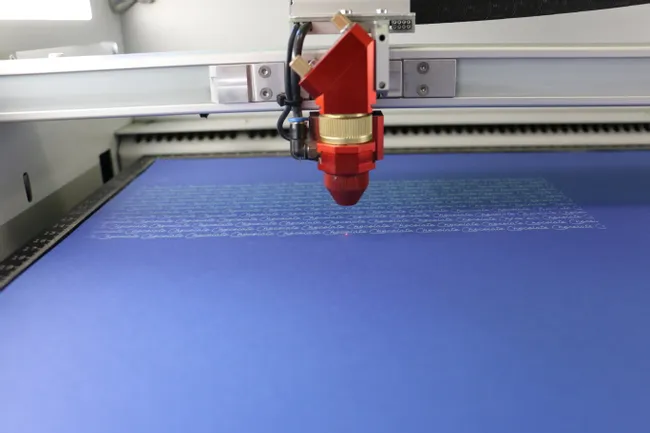

Step 2: Laser Process

When laser engraving this very thin type of paper, you will only need to use minimal laser power, as the material is only being bleached. Place the paper into your laser engraving machine and begin the process using the following parameters:

LASER PARAMETERS:

Colour	Process	Power (%)	Speed (%)	ppi/Hz:
Black	Engrave CO₂	10	10	500
Red	Cut CO₂	2	2	1000
Blue	Cut CO₂	7	4	1000
Cyan	Cut CO₂	9	9	1000

Passes	Air Assist	Z-Offset	Advanced
1	On	-	-
1	On	+ 3mm	-
1	On	+ 3mm	-
1	On	-	-

Step 3

Step 3: Post-processing

Now that you've finished laser processing your paper, remove it from the machine. You'll need to fold along all the indicated folding lines and stick the packaging together.
