Laser Marking with Trays

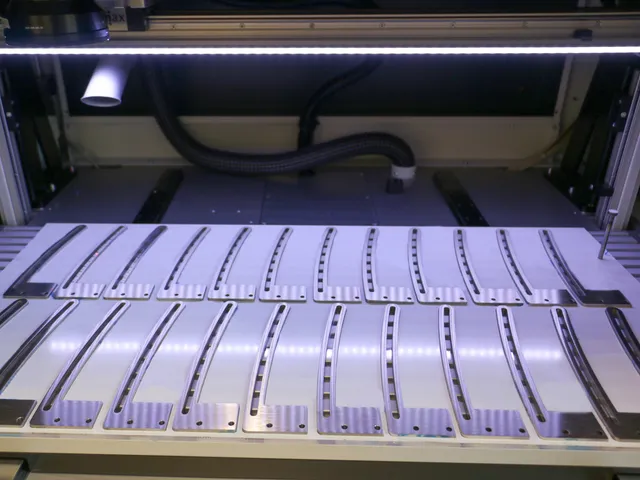

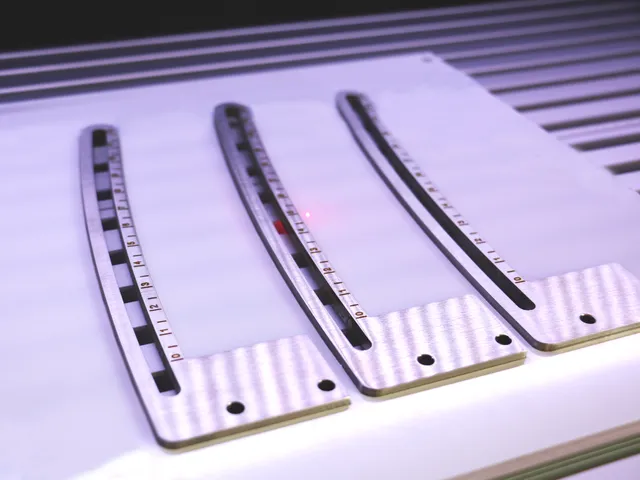

Want to mark several parts in one operation to save time? Trays are very useful tools for that purpose. Depending on the batch size and required marking time, you can also use larger laser workstations. This allows you to mark more components in one operation and maximize output. Thus time-consuming handling through loading and removal is reduced. Here is a time comparison when using a SpeedMarker 700 and SpeedMarker 1300.

Conclusion: By reducing time-consuming handling, you can increase productivity by 40%

The laser time, the opening and closing of the door in automatic mode and the loading and unloading of the workpiece carrier take the same amount of time with both laser machines. With the SpeedMarker 1300, the axes move to take advantage of the entire working space. This takes a total of 2 seconds per workpiece carrier. The deciding factor is the necessary repetitions. While the loading and unloading as well as the opening and closing of the door only takes place 10x with the SpeedMarker 1300, this process repeats a total of 80x on the SpeedMarker 700. Thus time-consuming handling can be significantly reduced by using a larger workstation with large tr
