engraved details wrist watch

Wrist watch

We show you how you can laser engrave and mark materials in one step.

Preparation

Materials required
  • Wristwatch with a stainless steel case
  • Lego to use as a jig for positioning the watch in the laser machine
Laser machine used
Product series

Any laser machine from the flexx series can be used to engrave and mark this sample.

Wrist Watch

ZIP

Download now

Step by step

Laser engraving the wrist watch
Step 1

Step 1: Design

Start by importing our design template or create your own design. If you use our design adapt it to the shape of the watch. Measure the height difference between the materials. This figure is required for the z-offset (for the watch we used there is no height difference between metal and leather). This step is  important. For more tips and help about flexx laser machine technology, visit our flexx page.

Send the job to the laser machine using the following printer driver settings:

Process mode Resolution Cut line Halftone Others
Standard 1000 dpi none Colour -

Tip:

It is easier to position/adjust the design if the graphic elements for the housing and wristband are sent separately. This allows you to position the graphics precisely with the help of the laser pointer.

laser marking metal wrist watch
Step 2

Step 2: Laser engraving and marking

Create the parameter settings. Parameters will differ depending on the laser machine used and its available laser power.

Important: When laser engraving a flexx job, always focus on the metal/ the material that will be engraved with the fiber laser source.

Laser Marking (Annealing) Parameters for the watch :

Colour  Process Power (%) Speed (%) ppi/Hz
Black Engraving FLP 85 3 30000
Passes Air Assist Z-Offset Advanced
1 on +2 mm -

 Laser Engraving Parameters for the strap:

Colour Process Power (%) Speed (%) ppi/Hz
Red Engraving CO2 15 15 1000
Passes Air Assist Z-Offset Advanced
1 on - -

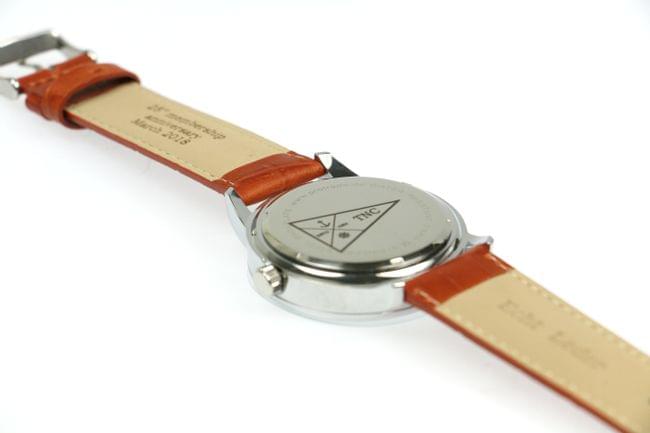

Laser engraved wrist watch
Step 3

Step 3: Post-processing

Thanks to the annealing process the material surface remains unchanged negating the need for post-processing, while also makinf the watch comfortable to wear.
