Bottle display made of printed TroGlass XT

Create an original bottle display from TroGlass XT. Extruded acrylic has a constant material thickness and is therefore suitable for applications where parts have to be put together.

Bottle display made of printed TroGlass XT

Create an original bottle display from TroGlass XT. Extruded acrylic has a constant material thickness and is therefore suitable for applications where parts have to be put together.

Preparation

Materials

1 quarter-sheet of TroGlass XT (1/8")

Did you know that a single single acrylic sheet has different thickness throughout its entirety?

The variability in thickness — or tolerance, as it is commonly called — is a normal outcome of acrylic production, regardless of which process is used. However, the type of acrylic will indicate the degree of variability you can expect. Extruded acrylics (such as TroGlass XT) are generally a better choice for projects that require cutouts to fit together, since they have a relatively low tolerance.

More About Acrylic

Machinery and Accessories

Speedy 360 (80 watts)
JobControl® Vision
2" lens
White acrylic gutting grid
UV printer with a minimum 12" x 24" work area

A Speedy 300 or Speedy 400 system equipped with JobControl® Vision can also be used for this project.

Original Images

Pineapple

Pineapple pieces

Note:
It is strictly prohibited to use the above linked files and images, in their original or modified form, to create products for sale or distribution. If you intend to do so, you must purchase the appropriate iStock license and comply with all applicable license terms and conditions.

Trotec Laser GmbH and its subsidiaries accept no liability for any type of damage which may be incurred directly or indirectly as a result of using this website. Trotec Laser GmbH and its subsidiaries also accept no liability for the content on the iStock website, as the operator of this website is solely responsible.

Acrylic Bottle Display

ZIP

Download now

ZIP

Download now

Step by step

Step 1

Step 1: Prepare Artwork and UV Print TroGlass XT Sheet

To begin, download our designs (below). Please note that the folder contains two documents:

UV printing file: DIY-Print_preview.pdf
Laser cutting file: DIY-bottle-display-TroGlassXT.pdf

Please note that the display stand can accommodate bottles having a 6 cm diameter, at most. If you wish to use the stand for wider bottles, you will need to adjust the artwork.

Once you are satisfied with your designs, proceed to UV print the pineapple images (i.e., from the DIY-Print_preview.pdf file) the reverse side of the TroGlass XT sheet.

Tips

If you choose to make any adjustments to the size or shape of the pineapple elements on one file, ensure that they are also made to the corresponding elements on the other file. In other words, the size and contours of the pineapple elements on both files should be identical. Otherwise, the artwork may be too large or small to fit on the cutouts.

It is also important to include registration marks that can be recognized by your JobControl® Vision system. This will ensure that the contours of the artwork are cut with precision.

Step 2

Step 2: Test Cut TroGlass XT Sheet

Before drawing the final connections, measure the kerf. To accomplish this, simply make a test cut with a suitable parameter and lens.

TIP

As TroGlass XT has little variability in its thickness, you can apply the same settings from your test results to future projects (for which you use the same material and thickness).

Step 3

Step 3: Send Cutting File to Laser

Once you are satisfied with your results, send the job to your laser using the following settings:

Print Settings

Process mode	Resolution	Cut line
Vector Job	500dpi	none

Halftone	Others
-	Optimized Geometries, inner geometries first

Step 4

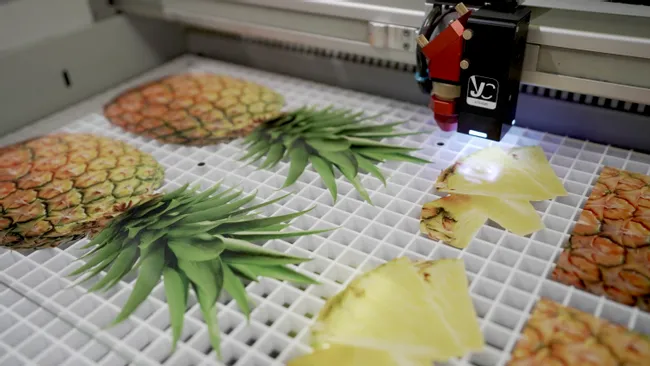

Step 4: Laser Process TroGlass XT Sheet

Place the TroGlass XT sheet on the white acrylic cutting grid table in your laser.

Next, enter the laser parameters specified below. Please note that the optimal parameters will vary based on your specific laser and its available wattage. Then proceed to laser cut the sheet.

Processing Parameters

Color	Process	Power (%)	Speed (%)	ppi/Hz
red	Cut CO₂	70	0,4	15.000

Passes	Air Assist	z-Offset	Direction	Advanced
1	ON	-	-	-

Step 5

Step 5: Assemble Bottle Stand

To begin constructing your stand, connect the square pineapple skin cutout to the bottom of the large pineapple-shaped cutout.

Attach the clear TroGlass XT piece with the circular cut to the large pineapple cutout, using the remaining slots. To complete the stand, simply attach the piece with the pineapple slice images to the front of the stand, with the printed side facing inwards.

TroGlass XT: Precise and Durable Results

As an extruded acrylic, TroGlass XT features low thickness variability (tolerance). Hence, this material ideal for projects which require cutouts to easily connect — think model making, prototyping, and POS display manufacturing.

Additionally, TroGlass XT is highly resistant to weathering, which makes it a good option for signage and exterior design applications.
