How to export
laser parameters
Export files from JobControl to save them to an external drive or use them on another workstation. JobControl® files comprise the laser parameters and are stored in XML format. (These can also be re-imported later.)
Steg för steg
![](/static_processed/18ffdb18519544dac8f667f56a141c16/jobcontrol-settings-cfa.jpg?{"image":"https://backend.troteclaser.com/static/jobcontrol-settings-cfa.jpg","edits":{"extract":{"top":0,"left":0,"width":330,"height":248},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})

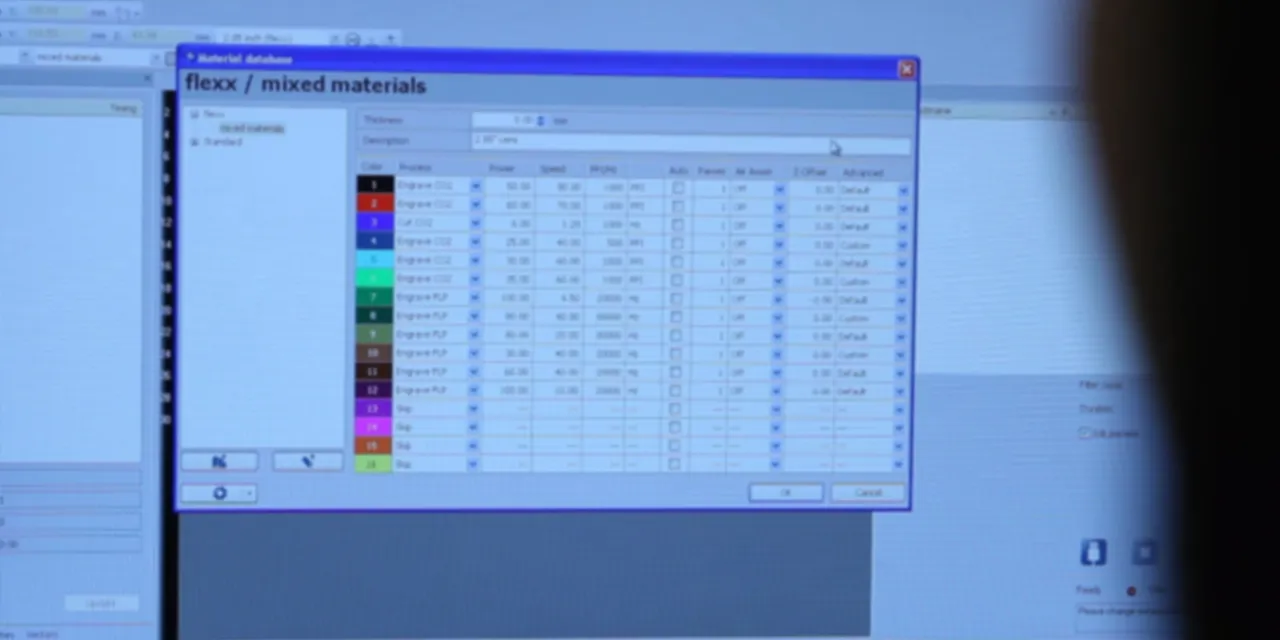

Opening the material database
- Open JobControl® on your computer
- Select "Settings" → “Material Template Setup Ctrl+M"
- The materials database opens
![](/static_processed/6129b20e53333c8ef23c3a52f0376c54/material-database-laser-software-60b.jpg?{"image":"https://backend.troteclaser.com/static/material-database-laser-software-60b.jpg","edits":{"extract":{"top":0,"left":6,"width":653,"height":490},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})

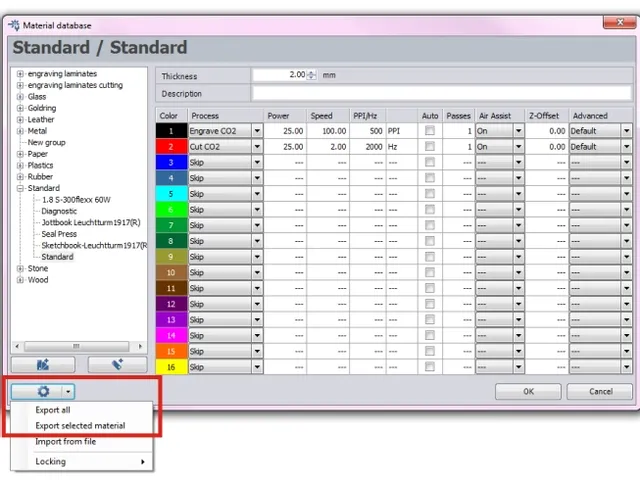

Exporting by clicking the gear icon
- Select “Material group"
- Click the gear icon
- Then select whether you want to export all materials or only one of them.
Now select the storage location, and you're done!
![](/static_processed/fc1b59fe6b77cabc4f60dd74a67e9494/laser-settings-import-softare-f82.jpg?{"image":"https://backend.troteclaser.com/static/laser-settings-import-softare-f82.jpg","edits":{"extract":{"top":0,"left":24,"width":198,"height":149},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})
Importing files
Now you want to re-import the file on another PC? This guide describes the importing process step by step.
