Create a unique jewellery display using different TroGlass acrylic sheets. TroGlass is available to purchase from our engraving supplies webshop.

Preparation

Materials required

1/4 sheet TroGlass Clear 8 mm
1/4 sheet TroGlass Clear 5 mm
1/4 sheet TroGlass Satins Orange translucent with double-sided adhesive foil on both sides

All of these materials are available from our engraving supplies webshop.

Laser machine used

Speedy 400, 120 Watt with a 2.5" lens
Acrylic lamella or vacuum table with acrylic grid or distance holders

Any Speedy family or SP series laser machine can be used to create this display. To achieve a high-quality result and efficiently cut 8mm acrylic you need a laser power of 80W or more.

Important information

Remove the protective foil from the top of both the 5mm and 8mm acrylic prior to laser cutting and engraving
Cover the rest of the working area with a suitable material (such as paper) to improve extraction

jewelry-display.zip

ZIP

Download now

ZIP

Download now

Step by step

Step 1

Step 1: TroGlass Clear 8 mm

Start by importing your design or our template into your graphic program and send the job to the laser using the below parameters.

Print settings

Process mode	Resolution	Cut line
Standard	500 dpi	none

Halftone	Others
Color	enhanced geometries

Step 2

Step 2: Laser cutting and engraving: TroGlass Clear 8 mm

Select the parameters for the job. These can vary depending on your laser machine and available laser power.

Tips:

For a better result laser cut the acrylic before laser engraving.

Laser Parameters

Color	Process	Power (%)	Speed (%)	ppi/Hz
black	engrave CO₂	23	75	500
red	cut CO₂	95	15	20.000

Passes	Air Assist	Z-Offset	Advanced (plate set up)
1	on	-	Engraving direction from bottom
1	on	-2.5 mm	-

Step 3

Step 3: TroGlass Clear 5 mm

Import our template or your own design into the graphic program and send the job to the laser using the following parameters:

Print settings

Process mode	Resolution	Cut line
Standard	500 dpi	none

Halftone	Others
Color	enhanced geometries

Laser cut acrylic components for display

Step 4

Step 4: Laser cutting: TroGlass Clear 5 mm

Select the parameters which vary depending on your laser machine and its available power.

Laser Parameters

Color	Process	Power (%)	Speed (%)	ppi/Hz
red	cut CO₂	50	0.2	20.000

Passes	Air Assist	Z-Offset	Advanced
1	on	-1.5 mm	-

Information:

In this example we used the quality parameters from JobControl®
You can download JobControl® parameters from www.troteclaser.co.uk

Step 5

Step 5: TroGlass Satins

In your graphic program load the template and send it to the laser using the below parameters:

Print settings

Process mode	Resolution	Cut line
Standard	500 dpi	none

Halftone	Others
Color	enhanced geometries

Step 6

Step 6: Laser cutting TroGlass Satins

Select your parameters for laser cutting, which can vary depending on laser machine and laser power available.

Laser Parameters

Color	Process	Power (%)	Speed (%)	ppi/Hz
red	cut CO2	30	0.2	20 kHz

Passes	Air Assist	Z-Offset	Advanced
1	on	-	-

Info:

We used the standard JobControl® parameters optimised for quality
Material parameters for JobControl® are available at www.troteclaser.co.uk

Step 7

Step 7: Post-processing and assembly

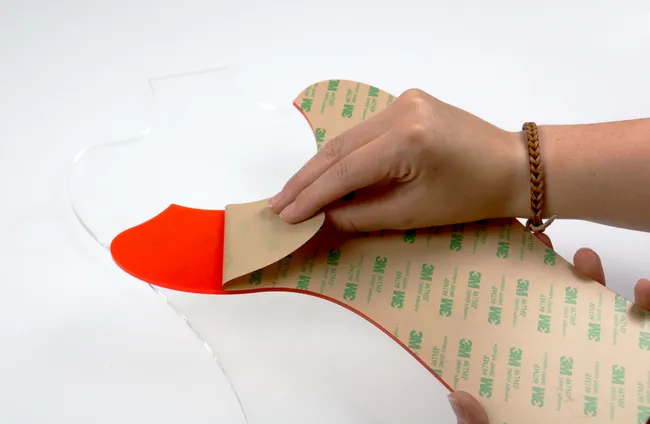

When assembling your display begin by gluing the coloured TroGlass Satin components to the 5mm clear acrylic, ensuring that the pieces are positioned exactly above each other.

The next step is to position the engraved 8 mm acrylic. To protect your laser engraved design position the engraved side onto the coloured acrylic.

Inspirations

For an even more individual presentation of your jewellery, use displays in other shapes, material thicknesses and material combinations. If you are using only few thin acrylic sheets, cut a base to let the display stand stable.
