Import our template and adapt it to your requirements.

Important:
Our template is designed for a standard 0.75l wine bottle. Check the dimensions of the box and your chosen bottle before cutting the individual parts. Adjust the graphic if necessary.

In Ruby, split our template into 2 separate designs, one birch and one walnut. This will make them fit the size of the wood panels perfectly.

With "Create job" move the design to the "Prepare" screen.

If you want to use masking tape, put it on the wood sheets. This reduces cleaning afterwards.
Place the job to the desired position in Ruby® and adapt the settings. Put the material into the laser.
The laser parameters may vary depending on the type of laser machine and available laser power.
Send the job to the "Queue" for Laser processing.

Info:
Wood is a natural product. It characteristics can vary. We recommend to test the parameters before you produce the work piece.

Inner geometries first: On
Skip overlapping cut lines: On

Wood Veneer Birch

Wood Veneer Walnut

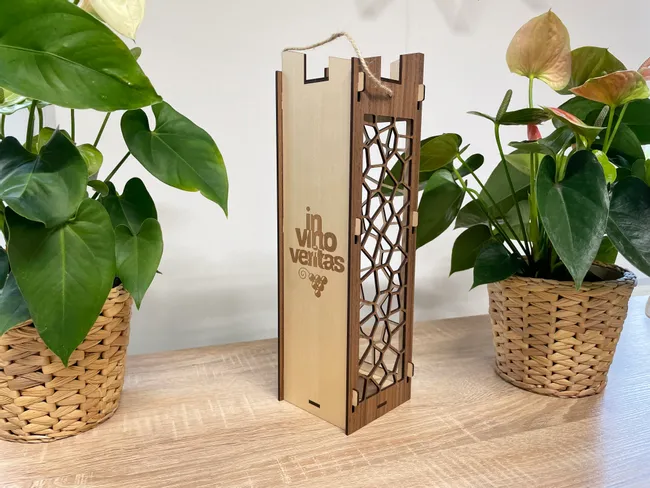

Clean the cut pieces with a damp cloth.If you used Marking tape, simply remove it. This reduces cleaning.  All you need for the assembly are the wooden parts and a little bit of dexterity. The individual pieces are put together one by one resulting in a finished wine box.
