Bottle display made of printed TroGlass XT

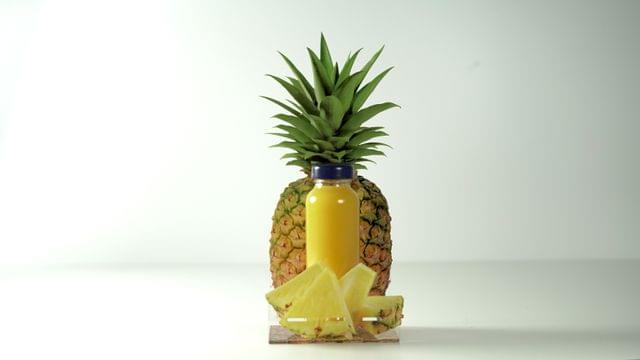

Create an original bottle display from TroGlass XT. Extruded acrylic has a constant material thickness and is therefore suitable for applications where parts have to be put together.

Preparation

Used material

3mm TroGlass XT

Machine used

Speedy 360
80 watts
2" lens
white acrylic gutting grid

This sample can be made with the Speedy 300 and Speedy 400 laser engraver with the JobControl^® Vision software.

Copyright notice:

This template may not be used for products for resale or other distribution. If you intend to do so, you must purchase your own iStock license "Pineapple" and "Pineapple pieces". We assume no liability for illegal actions.

Acrylic Bottle Display

ZIP

Download now

ZIP

Download now

Step by step

Step 1

Step 1: Import graphic files and print

Import our template and adapt it to your requirements. We print the design to the back of the acrylic with an UV-printer. With the registration marks the JobControl Vision camera system will recognize the position and cut precisely along the contour.

Step 2

Step 2: Design acrylic

Import our template and adapt it to your requirements. Before drawing the final connections measure the kerf. For this make a test cut with a suitable parameter and lens. TroGlass XT comes with a consistent material thickness. Hence you can transfer the testing results to all future designs when using the same laser settings.
Send the job to the laser using the driver settings below.

Print settings:

Process mode	Resolution	Cut line
Vector Job	500dpi	none

Halftone	Others
-	Optimized Geometries, inner geometries first

Step 3

Step 3: Laser process

The laser parameters may vary depending on the type of laser machine and available laser power.

Laser parameters:

Color	Process	Power (%)	Speed (%)	ppi/Hz
red	Cut CO₂	70	0,4	15.000

Passes	Air Assist	z-Offset	Direction	Advanced
1	ON	-	-	-

Step 4

Step 4: Assembly

Assemble the individual parts and add the product you want to promote.
