  4. Digitally printed puzzle
print & cut puzzle

Digitally printed puzzle with individual engraving

Step by Step instruction

Learn how to make a personalized puzzle out of our new Digital Print Series material using our guide and template below.

Preparation

Required material
  • 1/2 sheet TroLase Metallic, matte brushed Aluminum/Black 1.6 mm
  • 1/2 sheet TroLase ADA Polar White 1.6 mm
  • Photo Frame 30 x 40 mm
  • Material to cover the working table (e.g. Paper)
Machine Used
  • Speedy 400, 120 Watt
  • 2" lens
  • vacuum table
  • acrylic cutting grid

This sample can be produced with any of the machines from the Speedy laser engraver Series.

Tips

We used a free software to create the puzzle pieces. You can find numerous providers on the internet.

puzzle-digital-print-series.zip

ZIP

Download now

Step by step

print settings laser material dps
Step 1

Step 1: Create print and laser design

Download our graphic or create your own design. Tips and tricks on how to create graphics for Digital Print Series can be found here.

Then send the puzzle engrave-and-cut file to the laser.

Print settings

Process mode Resolution Cut line
Standard 600 dpi none
Halftone Others
Color Optimized geometries, inner geometries first
laser engraving puzzle
Step 2

Step 2: Laser process puzzle

We used the quality-optimized TroLase standard parameters from JobControl® for the engraving settings. Due to the complex geometries of the puzzle pieces, we adapted the cutting parameters. (The parameters might vary depending on the machine used and the available laser power.)

Next put the printed sheet of Digital Print Series on the acrylic cutting grid of your Trotec Laser. Engrave and cut the design.

LASER PARAMETERS

Color Process  Power (%) Speed (%) ppi/Hz
Black Engrave CO2 40 100 600
Red Cut CO2 32 0.8 5000
Blue Cut CO2 60 1.62 5000
Passes Air Assist Z-Offset Advanced
1 on +1.5 mm High Quality
1 on - -
1 on - -

Important:

Engrave from bottom to top. This prevents the dust from collecting in the engraved areas.
Take a sheet of paper and put it underneath the cut puzzle so that you can remove all elements from the laser at once.

print settings laser material ada
Step 3

Step 3: Graphic base plate

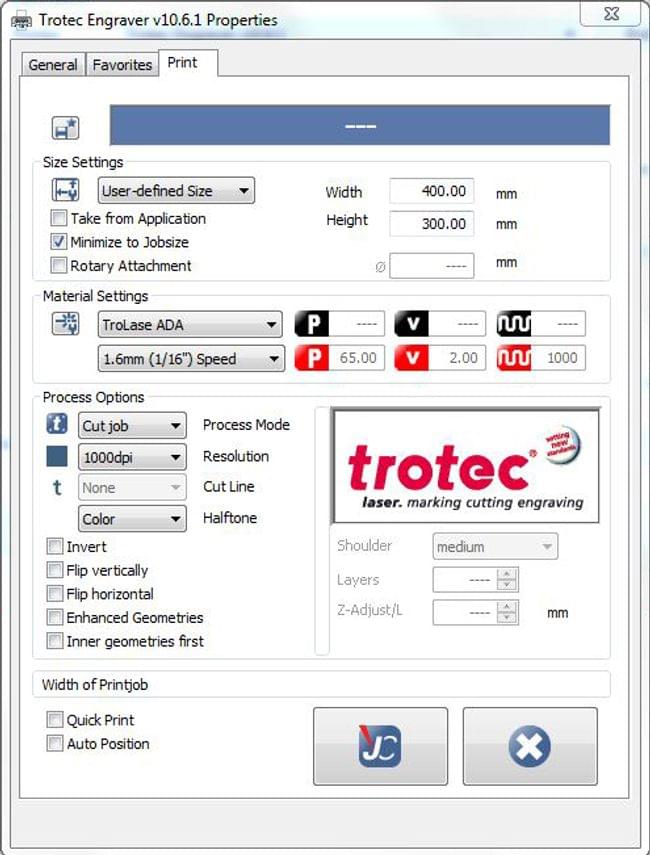

The base plate is necessary to display the puzzle in a frame. Send the graphic to the laser using the settings below.

Print settings

Process mode Resolution Cut line
Standard 1000 dpi none
Halftone Others
Color -
base plate puzzle
Step 4

Step 4: Laser process base plate

The step is to put the TroLase ADA on the acrylic cutting grid and cut it out.

LASER PARAMETERS

Color Process Power (%) Speed (%) ppi/Hz
red Cut CO2 65 2 1000
Passes Air Assist Z-Offset Advanced
1 on - -

TIPS:

We used the speed-optimized standard laser parameters for TroLase ADA in JobControl®.

laser speedy puzzle
Step 5

Step 5: Cleaning and assembly

After engraving, clean the puzzle using a damp cloth.

TIP:

If you leave the material in the laser with the vacuum activated after you are finished processing, the parts will stay in position during cleaning.

inspiration laser cutting puzzle

Inspiration

  • Make a bigger base plate and use the new Trotec signage mounting devices to mount the puzzle on the wall. In this case, you could put double-sided adhesive tape on the printed plate before cutting.
  • Print general atmospheric pictures (e.g. sunsets, sandy beaches, flowers,...) on stock and engrave them afterward according to your customers' requirements.
