Vintage inspired sign "Diner"

With a few TroGlass materials and some time, you can produce this impressive vintage "Diner" sign.

Preparation

Materials used
  • 1 sheet TroGlass Clear 3mm
  • 1 sheet TroGlass Colour Gloss Red with adhesive
  • 1 sheet TroGlass LED Orange with adhesive
  • 1 sheet TroGlass Satins Orange with adhesive
  • 1 sheet TroGlass Colour Gloss Yellow with adhesive
  • 1 sheet TroGlass Colour Gloss White with adhesive
  • 1/4 sheet TroGlass Metallic Bright Silver with adhesive
  • 1/4 sheet TroGlass Reverse Gloss/White Blue with adhesive

Buy all Trotec Materials on our engraving supplies webshop

Laser cutting machine used
  • SP500
  • 200 watts
  • 2.5" lens
  • White acrylic cutting grid

You can use any Speedy laser engraver or SP laser cutter machine. Remember to adapt the design to the size of the laser machine used.

Vintage Sign Diner

PDF

Download now

Step by step

print settings troglass sign
Step 1

Step 1: Import graphic file

Either use your own design or import our graphic and adapt it to your requirements. Send the graphics to the laser using the driver settings below.

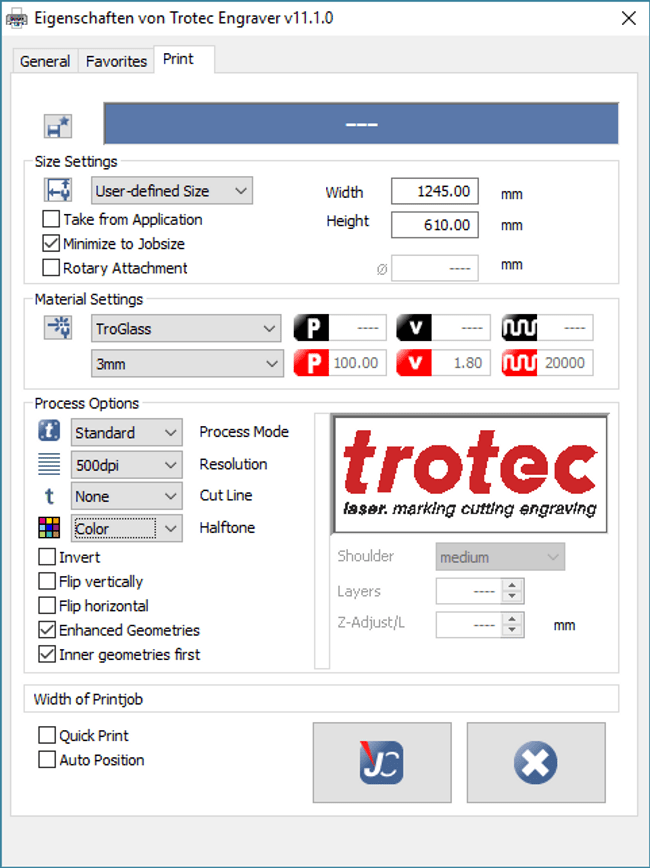

Print settings:

Process mode Resolution Cut line
Standard 500dpi none
Halftone Others
Colour Optimised geometries
inner geometries first
overview acrylic sheets used
Step 2

Step 2: Laser cutting acrylic

Define the correct material settings. The laser parameters will vary depending on the laser machine used and the available power.

Laser Parameters:

Colour Process Power (%) Speed (%) ppi/Hz
red Cut CO2 100 1.8 20,000
Passes Air Assist Z-Offset Direction Advanced
1 ON - - -
Step 3

Step 3: Assembly

Once all materials have been processed remove the protective foil from the clear acrylic and begin by applying the orange arrow. The next step is to add the TroGlass Satin and Colour Gloss arrows. Then place the red acrylic sheet directly beneath the arrows.

For the diner characters, start by placing the TroGlass Metallic, on top of that material add the white and blue letter components. Finally, place the white highlight circles on top of the orange arrow.

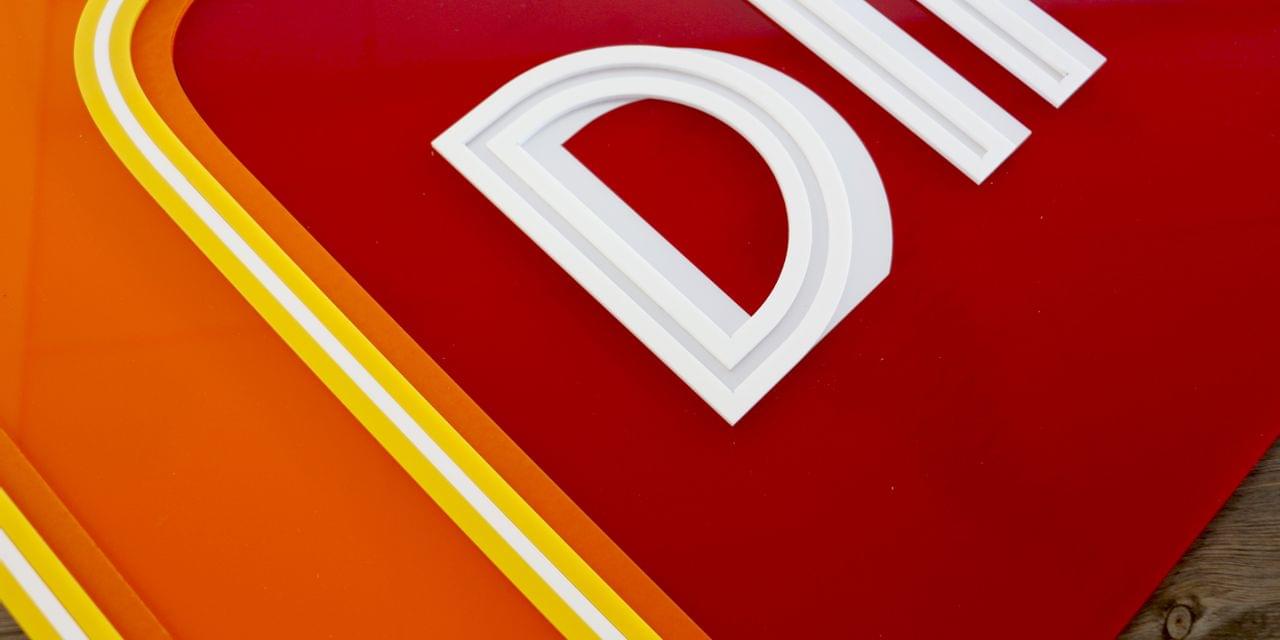

diy vintage sign diner
